Materials Handling

Pipe Lifting Devices

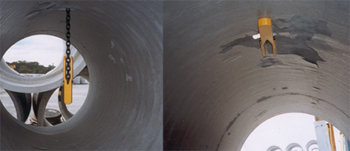

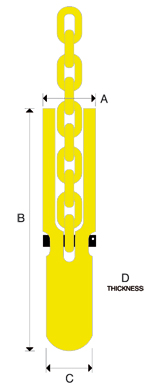

Toggle Type Pipe Lifter

8 mm GRADE 80 CHAIN LENGTH TO ORDER

Code	WLL	Dimensions in mm				Weight
	Tonnes	A	B	C	D	kg
CONP2T	2	58	365	46	25	1.5 (No Chain)

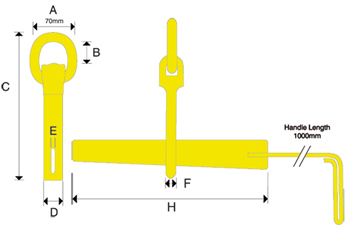

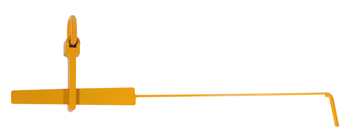

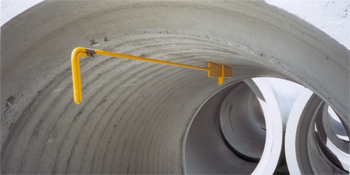

Spade Type Pipe Lifter

Code	WLL	Dimensions in mm							Weight
	tonnes	A	B	C	D	E	F	H	kg
CONPL5T	5	70	70	405	65	9	26	500	7.4

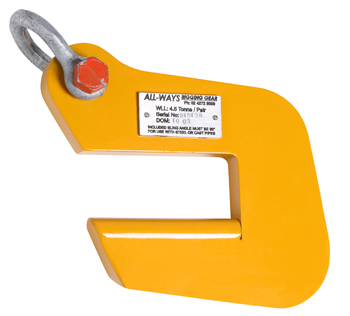

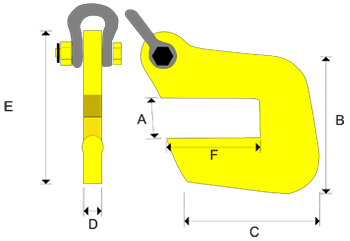

Pipe Lifting Hook

Code	WLL	Dimensions in mm						Weight
	tonnes	A	B	C	D	E	F	kg
PLH3.2T	4.5/Pair	55	208	205	25	240	140	8.3

* For use with steel or cast pipes

* Included Sling Angle must be 90°
