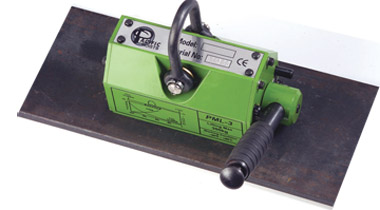

Pacific Permanent Magnetic Lifter



The Permanent Magnetic Lifter can be used in a variety of industries for the transportation of lifting steel, engine parts, semi manufactured goods and moulds. Due to its magnetic force there is no need to use slings, clamps, or other holding devices eliminating damage to the surface of lifted goods.

FEATURES :

  • The Magnetic Lifter's highest pulling force is 3.5 times greater than the rated lifting capacity.
  • Light weight, ranging from 10 - 50kg.
  • Safe: No Electricity is needed to operate the Magnetic Lifter. Once operated there is less than 1% residual magnetism
  • The simple switch and safety button design allows for one handed operation.

Model PML-3 PML-6 PML-10
Capacity kg Hor plate Vert plate Round bar Hor plate Vert plate Round bar Hor plate Vert plate Round bar
300 100 100 600 200 200 1000 300 300
Max breakaway force N 1050 2100 3500
Weight kg 10 24 50
L 162 232 258
B 92 122 176
H 91 117 163
R 150 196 284
