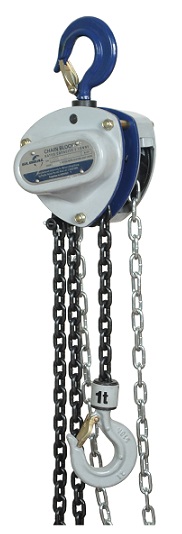

'S' Series

Chain Hoists

Capacities: 500kg to 30 tonnes


FEATURES :

  • Lightweight robust construction
  • Super strength alloy loadchain
  • Fully machined liftwheel
  • Minimum headroom
  • Minimum effort to raise maximum load
  • Cast steel safety latches
  • Lower hook complete with thrust race

  • Fully enclosed gear train
  • Weather protected automatic Weston brake with unique Twin Pawls
  • Galvanised handchain as standard
  • Durable baked enamel paint protection
  • Stainless Steel labels
  • Spare parts always available


Chain Bags also
available


Product Code SOCB05 SOCB1 SOCB1.5 SOCB2 SOCB3 SOCB5 SOCB10
Working Load Limit 0.5 t 1 t 1.5 t 2 t 3 t 5 t 10 t
Standard lift 3 m 3 m 3 m 3 m 3 m 3 m 3 m
Falls of chain 1 1 1 1 2 2 4
Effort to lift W.L.L. 23 kg 30 kg 32 kg 35 kg 27 kg 41 kg 39 kg
Net weight 10 kg 12 kg 13 kg 22 kg 32 kg 46 kg 68 kg
Loadchain diameter 6 mm 6 mm 8 mm 8 mm 8 mm 10 mm 10 mm

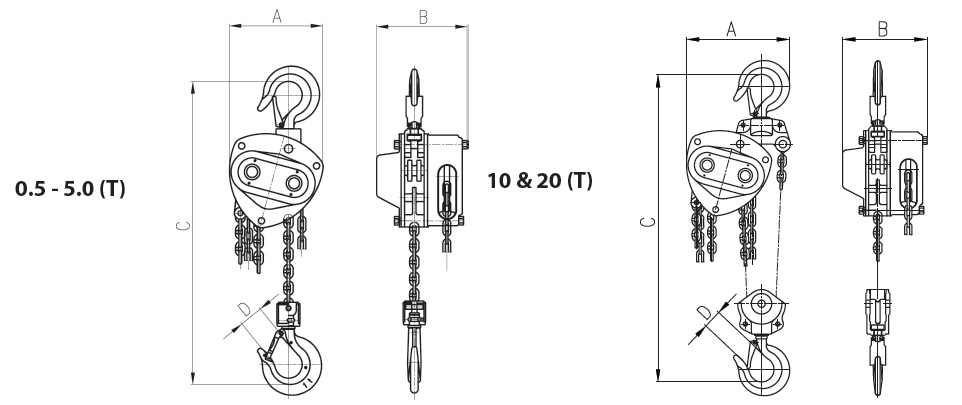

CLEARANCE DIMENSIONS (mm)
A (Headroom) 270 317 399 414 465 636 750
B (Width) 127 158 187 187 210 253 373
C (Depth) 131 140 161 161 161 161 184
Hook opening (upper) 30 28 36 33.5 40 50 64
Hook opening (lower) 30 28 36 33.5 40 50 64

* N.B. Specifications and dimensions for 20 & 30 tonne available on application.

COMPLIES WITH AS/NZS1418.2

Meets or exceeds all relevant world standards




Loadsafe

Chain Hoists

Capacities: 500kg to 30 tonnes


FEATURES :

  • Lightweight robust construction
  • Super strength alloy loadchain
  • Fully machined liftwheel
  • Minimum headroom
  • Minimum effort to raise maximum load
  • Cast steel safety latches
  • Lower hook complete with thrust race

  • Fully enclosed gear train
  • Weather protected automatic Weston brake with unique Twin Pawls
  • Galvanised handchain as standard
  • Durable baked enamel paint protection
  • Stainless Steel labels
  • Spare parts always available

Product Code SOCB05 SOCB1 SOCB1.5 SOCB2 SOCB3 SOCB5 SOCB10
Working Load Limit 0.5 t 1 t 1.5 t 2 t 3 t 5 t 10 t
Standard lift 3 m 3 m 3 m 3 m 3 m 3 m 3 m
Falls of chain 1 1 1 1 2 2 4
Effort to lift W.L.L. 23 kg 30 kg 32 kg 35 kg 27 kg 41 kg 39 kg
Net weight 10 kg 12 kg 13 kg 22 kg 32 kg 46 kg 68 kg
Loadchain diameter 6 mm 6 mm 8 mm 8 mm 8 mm 10 mm 10 mm
CLEARANCE DIMENSIONS (mm)
A (Headroom) 270 317 399 414 465 636 750
B (Width) 127 158 187 187 210 253 373
C (Depth) 131 140 161 161 161 161 184
Hook opening (upper) 30 28 36 33.5 40 50 64
Hook opening (lower) 30 28 36 33.5 40 50 64

* N.B. Specifications and dimensions for 20 & 30 tonne available on application.

COMPLIES WITH AS/NZS1418.2

Meets or exceeds all relevant world standards

Hand

Chain Hoist

Capacity: 250kg


FEATURES :

  • Lightweight robust construction
  • Chrome plated covers
  • Super strength alloy loadchain
  • Minimum headroom
  • Thrust race in lower hook


  • Fully enclosed gear train
  • Galvanised hand and loadchain
  • Minimum effort to lift W.L.L.
  • Spare parts always available

Model OMCB025
W.L.L. tonnes 0.25
Lift m 2
Test load t 0.375
Headroom (hook to hook) H min. mm 230
Effort to lift full load. N kg 12
No. of load chain fall lines 1
Load chain (dia. x pitch) mm ø4 x 12
CLEARANCE DIMENSIONS (mm)
A 100
B 110
C 48.5
D 109
E 18
E1 15.5
ø 25
Net Weight kg 3.5
Extra weight per metre of extra lift kg 0.54

COMPLIES WITH AS/NZS1418.2

Meets or exceeds all relevant world standards



Vital Chain Hoists

Capacities: 500kg to 20 tonnes

A range of heavy-duty chain blocks suitable for many applications in the industrial, rural, construction and mining industries.


FEATURES :

  • Made in Japan from optimum high quality steel to conform to strict J.I.S. and I.S.O. regulations
  • Designed for long term use providing the lowest possible per-use cost


  • Quality caged needle bearing on load sheave and thrust bearing on bottom hook
  • Hardened special alloy steel load chain identification marked to relevant standards
  • Corrosion protection

Model 05VH5 10VH5 15VH5 20VH5 30VH5 50VH5 75VH5 90VH5 92VH5 93VH5
Capcity tonne 0.5 1 1.5 2 3.0 5.0 7.5 10 15 20
Standard Lift m 3.0 3 3 3.0 3 3 3.0 3.0 3.0 3
Net Weight kg 8.6 11.5 13.8 21.6 22 41 60.5 77.5 150 190
Headroom C mm 305 345 370 425 505 635 740 760 850 870
Pull to Lift Load kg 25 33 34 34 35 39 41 41 41x2 41x2
CLEARANCE DIMENSIONS (mm)
A mm 127 147 147 179 147 179 179 179 207 207
B mm 144 157 174 204 206 263 345 367 745 873
G mm 27 30 34 37 43 47 67 67 87 87

COMPLIES WITH AS/NZS1418.2
