ENDO Spring Balancers


Designed to compensate for the weight of work tools, components and equipment, our large range of Endo Spring Balancers are ideally suited for suspending welding guns, electric, hydraulic and pneumatic tools and supporting assembly components during manufacture.

FEATURES :

  • Containing rare earth magnet significantly more powerful than ferrite.
  • Bi-polar structure ergonomically suitable for round work-pieces.
  • 5 models for flat plate and 4 models for flat and round work-pieces.
  • Minimised kicking force during switch handle turn-off process.
  • Economical design, offsetting the high cost of rare earth magnet.

BENEFITS:

  • Improved working efficiency and reduced fatigue
  • Decreases possibility of strains and other workplace injuries
  • Affords better use of work space
  • Allows for consistent, efficient placement of tools
  • Prevents damage to tools
  • Flexible placement







EW and EWF Series

A general purpose range of spring balancers designed for intermediate load capacities, all models in the EW and EWF Series range incorporate standard stopper devices in case of spring breakage, and secondary support hangers as an additional safety precaution. The cartridge type spring assembly makes for ease of replacement, drum lock device for ease of tool replacement. Plug type cable set, cable replacement without dismantling.

Model Part Balance Balance Stroke Weight Special
No. No. Range Range Features
Min.Kg Max.Kg m kg
EW-3 47885 1.0 3 1.3 1.5

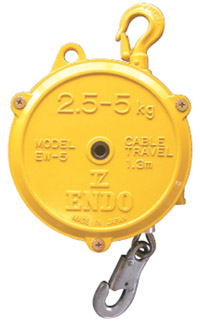

EW-5 47886 2.5 5 1.3 1.55 Cartridge
EWF-9 44263 4.5 9 1.3 3.1 type
EWF-15 44264 9.0 15 1.3 3.5 spring
EWF-22 44265 15.0 22 1.5 7.0 assembly
EWF-30 44266 22.0 30 1.5 7.85 and

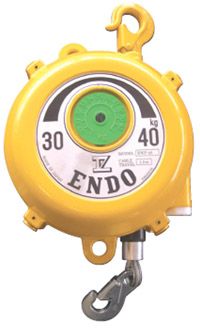

EWF-40 44267 30.0 40.0 1.5 9.7 drum
EWF-50 44268 40.0 50.0 1.5 10.1 lock
EWF-60 44269 50.0 60.0 1.5 11.0 device
EWF-70 44270 60 70 1.5 12.55
