Flat Webbing and Round Slings Load Chart

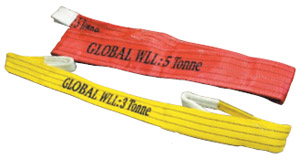

Flat Webbing Slings

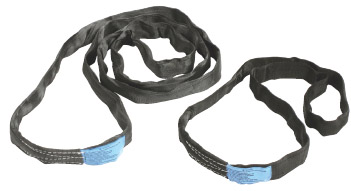

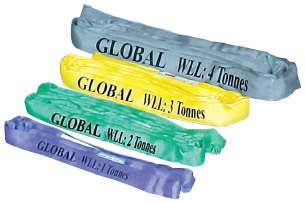

Round Slings

FEATURES

  • All slings are made from 100% Polyester.
  • WLL is clearly marked on each sling.
  • Colour coding on each sling for added safety.
  • Protective sleeves are recommended for lifting sharp and rough objects.

FLAT SLINGS

  • Manufactured to A.S.1353 Parts 1 & 2
  • SAFETY FACTOR 8:1

ROUND SLINGS

  • Manufactured to A.S. 4497.1
  • SAFETY FACTOR 7:1

Webbing Slings & Round Slings
Lifting Mode Vertical Choke Basket 30° 60° 90° 120° 60° 60° Choke
Capacity S.W.L. S.W.L. S.W.L. S.W.L. S.W.L. S.W.L. S.W.L. S.W.L. S.W.L.
Kg Colour Code Kg Kg Kg Kg Kg Kg Kg Kg Kg
1000 Violet 1000 800 2000 1900 1700 1400 1000 1700 1400
2000 Green 2000 1600 4000 3800 3400 2800 2000 3400 2800
3000 Yellow 3000 2400 6000 5700 5100 4200 3000 5100 4200
4000 Grey 4000 3200 8000 7600 6800 5600 4000 6800 5600
5000 Red 5000 4000 10000 9500 8500 7000 5000 8500 7000
6000 Brown 6000 4800 12000 11400 10200 8400 6000 10200 8400
8000 Blue 8000 6400 16000 15200 13600 11200 8000 13600 11200
10000 Orange 10000 8000 20000 19000 17000 14000 10000 17000 14000


Flat Webbing Slings

Round Slings
