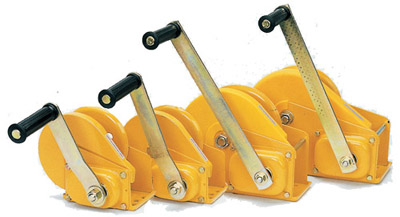

Pacific Hand Winches
The cost-effective solution for a wide variety of applications, Pacific Load Brake Hand Winches can be use to pull or lift loads.
Gears are strong, durable and electroplated for extra corrosion resistance.
Double brake pawl for extra safety on BHW-1800 and BHW-2600 models
FEATURES
- Positive action brake can hold the load in any position
- Compact, light weight and rugged construction
- Mechanical components enclosed for protection
- Baked enamel finish for corrosion protection
- Rope to drum fixing clamp provided
- Available in corrosion resistant grade 304 stainless steel
- 'Noiseless' model available in BHW range
COMPLIES WITH AS1418.2
| Model Code | BHW-800 | BHW-1200 | BHW-1800 | BHW-2600 | SF-2200 | HW-1500 | |
| Capacity (Pull - Lift ) | kg | 370 - 180 | 545 - 270 | 820 - 410 | 1200 - 600 | 1100 | 680 |
| Hand force required | kg | 14.5 | 15 | 22 | 19 | 16 | 4.5 |
| Gear ratio | 4.1:1 | 4.1:1 | 5:1 | 10:1 | 22.2:1 | 41:1 | |
| Hub diameter | mm | ø40 | ø50 | ø70 | ø80 | ø60 | ø48 |
| Handle length | mm | 160 | 210 | 320 | 320 | 300 | 195 |
| Unit weight | kg | 3 | 3.3 | 8 | 10.3 | 13.5 | 4.9 |
| Rope diameter | mm | ø4 | ø5 | ø7 | ø8 | ø8 | ø4 |
| Rope storage capacity | m | 36 | 23 | 24 | 18 | 35 | 23 |
Model SF-2200
Ideal for use in confined locations, the ratchet handle permits reciprocating handle movement in both directions for hoisting and lowering loads.
