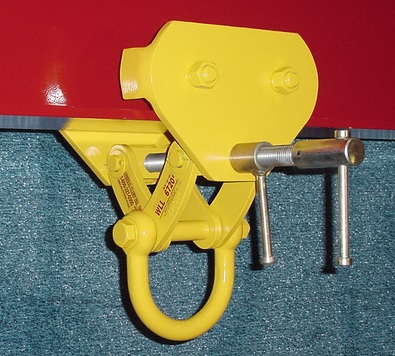

Girder Trolley with Clamps
Capacities: 1 tonne to 5 tonnes
FEATURES :
- Robust all-steel construction
- Durable baked enamel paint
protection
- Super-quick adjustment to any
girder width in range
- Spare parts always available
|
Product Code |
|
OGCT01 |
OGCT02 |
OGCT03 |
OGCT05 |
Working Load Limit |
kg |
1000 |
2000 |
3000 |
5000 |
Test load |
kN |
12.25 |
24.5 |
36.8 |
61.3 |
Min. radius |
mm |
1.1 |
1.3 |
1.5 |
1.7 |
Clearance DIMENSIONS (mm) |
A | 260 | 260 | 330 | 380 |
B | 340 | 340 | 360 | 480 |
C | ø20 | ø20 | ø24 | ø24 |
D | 10 | 12 | 14 | 19 |
H | 171-232 | 237-285 | 160-200 | 225-280 |
Beam width |
mm |
63-203 |
76-203 |
85-210 |
100-305 |
Net Weight |
kg |
11 |
13 |
26 |
46 |
COMPLIES WITH AS1418.2

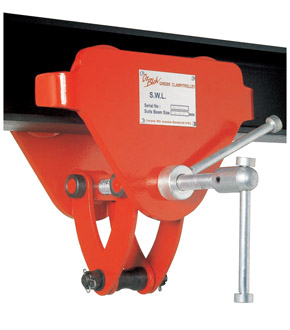

Adjustable Runway Beam Trolleys
Capacities: 1 tonne to 5 tonnes
This range of lightweight hand-push "SUPERCLAMP" adjustable runway beam trolleys offers easy to use mobile securing attachments for load and lifting requirements. Developed for lighter industrial application, this product range is completely recommended for maintenance departments and must be an integrated part of every engineers tool kit
FEATURES :
- Robust all-steel construction
- Durable baked enamel paint
protection
- Super-quick adjustment to any
girder width in range
- Spare parts always available
|
Product Code |
|
OGCT01 |
OGCT02 |
OGCT03 |
OGCT05 |
Working Load Limit |
kg |
1000 |
2000 |
3000 |
5000 |
Test load |
kN |
12.25 |
24.5 |
36.8 |
61.3 |
Min. radius |
mm |
1.1 |
1.3 |
1.5 |
1.7 |
Clearance DIMENSIONS (mm) |
A | 260 | 260 | 330 | 380 |
B | 340 | 340 | 360 | 480 |
C | ø20 | ø20 | ø24 | ø24 |
D | 10 | 12 | 14 | 19 |
H | 171-232 | 237-285 | 160-200 | 225-280 |
Beam width |
mm |
63-203 |
76-203 |
85-210 |
100-305 |
Net Weight |
kg |
11 |
13 |
26 |
46 |
| |
