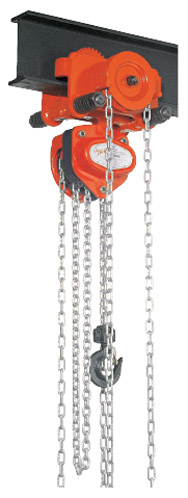

Combined Hoisting Assembly
'S' Series Chain Block Close Coupled to Push or Geared Girder Trolley
Capacities: 750kg to 6 tonnes
FEATURES :
- Hoist and trolley integrated offers minimum headroom and theft protection
- Robust all steel construction
- Minimum effort to raise load
- Super strength alloy steel chain
- Stainless steel name plates
- Durable baked enamel paint protection
- Weather protected Weston brake
- Cast steel safety latches
- Spare parts always available
- Overload protection offered as optional extra
| Model | OCHRG1/0 | OCHRG2/0 | OCHRG3/0 | OCHRG5/0 | |
| Rated Capacity | tonnes | 1 | 2 | 3 | 5 |
| Test load | kN | 15 | 30 | 45 | 75 |
| Min. radius | m | 1 | 1.2 | 1.4 | 1.6 |
| Pulling force to lift full load | N | 40 | 70 | 65 | 100 |
| Standard Lift | m | 3 | 3 | 3 | 3 |
| DIMENSIONS (mm) | |||||
| A | 277 | 302 | 363 | 436 | |
| B | 170 | 194 | 230 | 260 | |
| C | 10 | 12 | 14 | 18 | |
| D | 283 | 295 | 304 | 330 | |
| E | M22 | M27 | M30 | M42 | |
| F | =3 | =3 | =3 | =3 | |
| Beam width | mm | 58-180 | 58-180 | 74-180 | 98-180 |
| Min. headroom H | mm | 375 | 438 | 593 | 741 |
COMPLIES WITH AS/NZS1418.2
Meets or exceeds all relevant world standards
