PTI Series
JDN Flameproof Air Hoists
Capacities: 500kg to 100 tonnes
J.D. Neuhaus (JDN) has been manufacturing lifting equipment since 1745 and its pneumatic hoists are one of the safest and most cost efficient methods of pulling, lifting or lowering above or below ground where explosive atmospheres may occur.

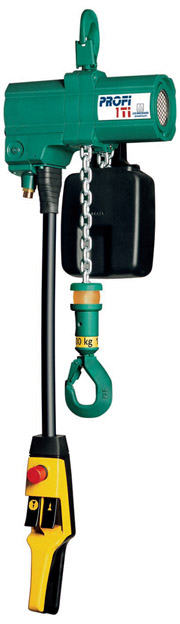

Shown with optional FI control
FEATURES :
- Manufactured in Germany under strict quality control and demanding tolerances
- Low maintenance design delivers 100% duty cycle in all environmental conditions
- Only six atmospheres of compressed air required
- Immune to dust, mud, dirt, grit, heat, vapours etc.
- Self-cooling pneumatic motor will not overheat
- Fail safe brake in case of air supply failure
- Ideal or use in mines, chemical plants, paint shops etc.
- Available with push, geared or air trolley

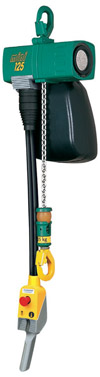

Mini 1000 Air Hoist The JDN economy series also available
JDN Air Winches also available.
Profi-Lifter
1000-1800kg capacity Durable steel structure
| Model Code No. | 0.5TS | 1TS | 2TS | 3TI | 6TI | 10TI | 16TI | 20TI | 25TI | 37TI | 50TI | 100TI | |
| Lifting Capacity | tonnes | 0.5 | 1 | 2 | 3.2 | 6.3 | 10 | 16 | 20 | 25 | 37.5 | 50 | 100 |
| Number of chain strands | 1 | 1 | 2 | 1 | 2 | 2 | 3 | 4 | 2 | 3 | 4 | 4 | |
| Motor output | kW | 1 | 1 | 1 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 6 | 6 | 6 | 10 |
| Weight at standard lift (3m) | kg | 27 | 28 | 34 | 86 | 110 | 156 | 240 | 285 | 498 | 880 | 855 | 2460 |
| Weight of 1m chain | kg | 1 | 1 | 1 | 3.8 | 3.8 | 5.8 | 5.8 | 5.8 | 10.8 | 10.8 | 10.8 | 21.3 |
| Chain dimension | mm | 7x21 | 7x21 | 7x21 | 13x36 | 13x36 | 16x45 | 16x45 | 16x45 | 22x66 | 22x66 | 22x66 | 31.5x90 |
| Air pressure | bar | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Air consumption at full load | Lifting | 1.2 | 1.2 | 1.2 | 4 | 4 | 4 | 4 | 4 | 5.5 | 5.5 | 5.5 | 11 |
| m3/min | Lowering | 1.5 | 1.5 | 1.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 6.5 | 6.5 | 6.5 | 12 |
| Air Connection | G1/2 | G1/2 | G1/2 | G3/4 | G3/4 | G3/4 | G3/4 | G3/4 | G1 | G1 | G1 | G11/2 | |
| Lifting speed at full load | m/min | 17 | 11 | 5.5 | 5 | 2.5 | 1.6 | 1 | 1.6 | 1.1 | 0.65 | 0.45 | 0.35 |
| Lifting speed without load | m/min | 19 | 11 | 5.5 | 10 | 5 | 3.2 | 2 | 1.4 | 2.3 | 1.6 | 1.3 | 0.7 |
| Lowering speed at full load | m/min | 17 | 11 | 5.5 | 10.8 | 5.4 | 3.4 | 2.1 | 0.7 | 1.9 | 1.5 | 1.4 | 0.8 |
| Smallest headroom | mm | 395 | 410 | 544 | 593 | 674 | 813 | 893 | 1090 | 1282 | 1466 | 1700 | 2200 |
Other lift heights are available.
COMPLIES WITH AS1418.2
