Superflex Wire Slings

Superflex is a plaited galvanised wire rope comprising of 12 plys of high tensile (2070 MPa) steel cable in a 4 x 3 sinnet configuration.

The plaited wire rope design offers exceptional rotation resistance characteristics. It is extremely flexible and very light and easy to handle.

Superflex is extremely tolerant to abuse and has less tendency to kink and runs easily over capstans and sheaves.

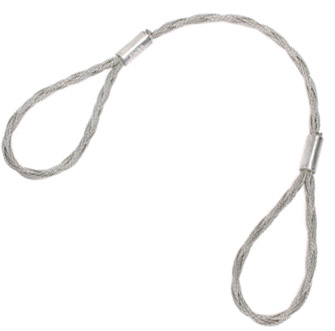

Eye to Eye Wire Slings

Cable Size Rope dia. Eye Size Minimum Breaking Force Safe Working Load in Tonnes
Sling Hitch Choke Round Choke Square
  mm mm kN 60° 90° 120°
2-0 8 150 30 0.5 1 0.4 0.3 0.9 0.7 0.5
2-5 10 180 47 0.9 1.8 0.7 0.5 1.6 1.3 0.9
3-0 12 220 70 1.3 2.6 1 0.7 2.3 1.8 1.3
3-5 14 250 93 1.8 3.6 1.4 0.9 3.1 2.5 1.8
4-0 16 290 125 2.4 4.8 1.8 1.2 4.2 3.4 2.4
4-5 18 320 157 3 6 2.3 1.5 5.2 4.2 3
5.0 20 360 210 4 8 3 2 6.9 5.6 4
6-5 26 470 335 6.4 12.8 4.8 3.2 11.1 9 6.4
8-0 34 600 500 9.5 19 7.5 4.8 16.4 13.3 9.5
10-0 44 800 750 14.7 29.4 11 7.4 30.6 20.6 14.7

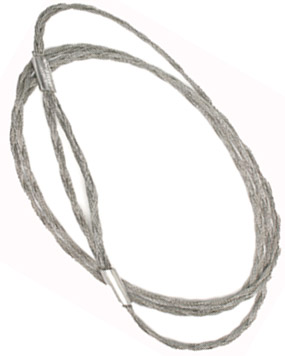

Endless Wire Slings

      Safe Working Load in Tonnes
Cable Size Rope dia. Minimum Breaking Force Single Stroop Strop as Cradle Choke Round Choke Square
  mm kN
2-0 8 30 0.8 1.5 0.6 0.4
2-5 10 47 1.4 2.7 1 0.7
3-0 12 70 2 3.9 1.5 1
3-5 14 93 2.7 5.4 2 1.4
4-0 16 125 3.6 7.2 2.7 1.8
4-5 18 157 4.5 9 3.4 2.3
5.0 20 210 6 12 4.5 3
6-5 26 335 9.6 19.2 7.2 4
8-0 34 500 14.3 28.5 10.7 7.2
10-0 44 750 22 44.1 16.6 11
For specialised applications or ropes please contact our technical

sales department.

Australian Standard AS1666-1
