Collared Lifting Eyebolts
Standard shot blasted finish. Optional finishes available on request. Metric, BSW and UNC thread forms. Special thread forms available on request. AS2317.
| Metric Threads | M10 | M12 | M16 | M20 | M22 | M24 | M30 | M33 | M36 | M42 | M48 | M56 | M64 | M76 |
| BSW Threads | 3/8" | 1/2" | 5/8" | 3/4" | 7/8" | 1" | 1.1/8" | 1.1/4" | 1.1/2" | 1.3/4" | 2" | 2.1/4" | 2.1/2" | 3" |
| Eye Diameter (mm) | 14 | 19 | 24 | 29 | 33 | 38 | 48 | 48 | 55 | 66 | 72 | 95 | 95 | 106 |
Forged Eyenuts
Standard shot blasted finish. Optional finishes available on request. Metric and BSW thread forms.
| Metric Threads | M10 | M12 | M16 | M20 | M22 | M24 | M30 | M33 | M36 | M42 | M48 | M56 | M64 | M76 |
| BSW Threads | 3/8" | 1/2" | 5/8" | 3/4" | 7/8" | 1" | 1.1/8" | 1.1/4" | 1.1/2" | 1.3/4" | 2" | 2.1/4" | 2.1/2" | 3" |
| Eye Diameter (mm) | 24 | 24 | 28 | 32 | 33 | 38 | 48 | 48 | 55 | 66 | 72 | 95 | 95 | 106 |

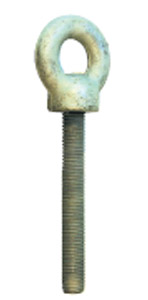

Longshank Eyebolts
Standard shot blasted finish. Optional finishes available on request. Metric and BSW thread forms.
| Metric Threads | M10 | M12 | M16 | M20 | M22 | M24 | M30 | M33 | M36 | M42 | M48 | M56 | M64 | M76 |
| BSW Threads | 3/8" | 1/2" | 5/8" | 3/4" | 7/8" | 1" | 1.1/8" | 1.1/4" | 1.1/2" | 1.3/4" | 2" | 2.1/4" | 2.1/2" | 3" |
| Eye Diameter (mm) | 24 | 24 | 28 | 32 | 33 | 38 | 48 | 48 | 55 | 66 | 72 | 95 | 95 | 106 |
Turnbuckles
Metric Turnbuckle range from M10 - M24 with full range of end fittings of elongated eyes, clevis jaws, stubs and hooks. Imperial turnbuckle range from 1.1/4" to 1.1/2". Available in Grades L, P and S. Testing and certification available. AS2319.
| Metric Threads | M10 | M12 | M16 | M20 | M22 | M24 | ||
| Imperial Threads | 1.1/4" | 1.1/2" |
Rigging Screws
Metric Rigging Screw range from M10 - M24. Imperial thread range from 1.1/4" to 2.1/2". Available in Grades L and P. Testing and certification available. AS2319.
| Metric Threads | M10 | M12 | M16 | M20 | M22 | M24 | ||||||
| Imperial Threads | 1.1/4" | 1.1/2" | 1.3/4" | 2" | 2.1/4" | 2.1/2" |
