Excel Grade 80 Components

CRO and CRC Grab Hooks are used to shorten or hold a length of chain.

An extra deep, narrow throat engages chain between the links.

There is no reduction of the W.L.L. Cradle grab hooks provide better chain support than standard grab hooks. Its specific form makes accidental disengagement of the chain difficult.

For intensive use however, we recommend using a shortening clutch (code GC of GCV). For safe use, a shortener must be assembled to the master link via 3-4 links of chain, and be independent of the loaded chain leg.












CRO Eye Grab Hook

Code W.L.L Chain Dimensions in mm Weight
t mm A B C P kg
6-8 6 1.12 43 17 59 45 0.09
7-8 7 1.5 56 17 75 47 0.16
8-8 8 2 60 18 79 50 0.19
10-8 10 3.15 75 22 99 63 0.35
13-8 13 5.3 98 28 128 80 0.73
16-8 16 8 110 33 148 98 1.38
18-8 18 10 122 36 165 110 1.86
20-8 20 12.5 134 45 185 122 2.34
22-8 22 15 145 44 198 132 3.16
26-8 26 21.2 164 55 225 156 5
32-8 32 31.5 192 65 268 192 9.33
Safety Factor 4:1


CRC Clevis Grab Hook

Code W.L.L Chain Dimensions in mm Weight
t mm A p kg
CRO 7/8 2 7/8 63 9 0.3
CRO 10 3.15 10 75 12 0.57
CRO 13 5.3 13 102 15 1.54
CRO 16 8 16 130 19 2.61
Safety Factor 4:1





GC and GCV Shortening Clutches are an essential part of chain
slings, used to shorten the lengths of the chain legs, and prevent
instability of the loads. Shortening clutches are also available
with a locking system, designed to prevent accidental
disengagement of the chain.






GC GCV Shortening Clutch

Code Code W.L.L. Chain ø Dimensions in mm Weight app.
    t mm A B kg
GC 6 GCV 6 1.12 6 54 22 0.22
GC 7/8 GCV 8* 2.00 7/8 65 30 0.41
GC 10 GCV 10 3.15 10 77 38 0.75
GC 13 GCV 13 5.30 13 105 49 1.63
GC 16 GCV 16 8 16 131 60 3.15
GC 18/20 GCV20** 12.5 18/20 143 76 4.06
* Only for 8mm chain
** Only for 20mm chain
Safety Factor 4:1





CSE Swivel Sling Hook with large eye enables easy assembly on
wire rope slings (with thimbles). There is also a flat on the eyes
to fit omega links. All of these hooks, except the CSE 18/20, have
a ball bearing in the swivel as a standard. This feature enables
smooth easy rotation under load.






CSE Swivel Sling Hook

Code W.L.L Chain ø Dimensions in mm Weight
t mm A D E P kg
CSE 5/6 1.12 5/6 101 29 33 28 0.40
CSE 7/8 2.00 7/8 121 32 31 29 0.77
CSE 10 3.15 10 147 37 40 31 1.41
CSE 13 5.30 13 185 47 46 40 2.53
CSE 16 8.00 211 57 58 47 47 3.90
CSE 18/20 12.50 265 66 56 64 64 6.81
Safety Factor 4:1

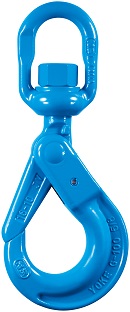

XLE Swivel Self Locking Hook with large swivel eye makes
assembly to wire rope slings (with thimbles) easier. There is also
a flat on the eyes that enables assembly with omega links.

All of these hooks have a ball bearing in the swivel as a standard.
This feature enables smooth, easy rotation under load.


XLE Swivel Self Locking Hook

Code W.L.L Chain ø Dimensions in mm Weight
t mm A B C D E P kg
XLE 0 1.12 5/6 122 16 24 32 34 32 0.73
XLE 1 2.00 7/8 148 23 29 37 40 44 1.35
XLE 2 3.15 10 183 30 34 49 49 49 2.45
XLE 3 5.30 13 214 35 43 56 61 64 4.38
XLE 4 8.00 268 39 57 66 66 59 78 7.86
XLE 5 12.50 350 53 59 82 82 90 92 12.5
Safety Factor 4:1







XLO Self Locking Hooks are traditional sized hooks with a larger
release mechanism making them easier to use with gloves, and
are therefore recommended for the construction industry.

The large eye enables easy assembly on wire rope slings (with
thimbles). The flat on the eyes makes assembly with omega
links easier.



XLO Eye Self Locking Hook

Code W.L.L Chain ø Dimensions in mm Weight
t mm A B C D P kg
XLO 0 1.12 5/6 113 16 24 25 32 0.48
XLO 1 2 7/8 132 23 29 29 44 0.9
XLO 2 3.15 10 167 30 34 35 49 1.69
XLO 3 5.3 13 194 35 43 47 64 3.28
XLO 4 8 244 39 57 60 60 78 6.04
XLO 5 12.5 284 53 59 69 69 92 9.4
Safety Factor 4:1





XLC Self Locking Hooks are traditional sized hooks with a larger
release mechanism making them easier to use with gloves, and
are therefore recommended for the construction industry.
The clevis enables a direct connection to Grade 80 chains.



XLC Clevis Self Locking Hook

Code W.L.L Chain ø Dimensions in mm Weight
t mm A B C D P kg
XLC 0 1.12 5/6 92 16 24 28 32 0.47
XLC 1 2 7/8 111 23 29 32 44 0.9
XLC 2 3.15 10 141 30 34 41 49 1.72
XLC 3 5.3 13 167 35 43 53 64 3.21
XLC 4 8 205 39 57 64 64 78 5.93
XLC 5 12.5 234 53 59 80 80 92 9.1
Safety Factor 4:1

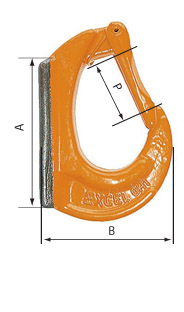

GH Excavator Hooks are welded directly to the booms of bucket
or crane loaders. (Welding instructions are supplied with each
hook). Note: Lifting with the teeth of an excavator is forbidden.
Latches are fitted as standard, to prevent accidental unhooking.






GH Excavator Hook

Code W.L.L Dimensions in mm Weight
t A B P kg
GH 0.75 0.75 56 70 22 0.23
GH 1 1 71 78 25 0.48
GH 2 2 91 81 36 0.72
GH 3 3 104 104 39 1.07
GH 4 4 129 42 1.59 1.59
GH 5 5 146 47 2.32 2.32
GH 8 8 146 52 3.27 3.27
GH 10 10 193 77 6.07 6.07
GH 15 15 225 76 9 9
Respect welding instructions.
Safety Factor 4:1

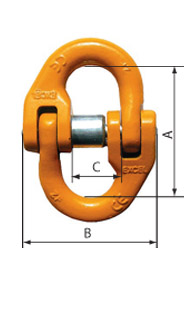

MJ Chain Connectors provide fast, easy assembly without the
need for special tools or skills. Designed for attaching hooks,
master links and other end fittings to Grade 80 alloy steel chains.






MJ Chain Connector

Code W.L.L. Chain ø Dimensions in mm Weight app.
  t mm A B C kg
MJ 6 1.12 6 45 40 15 0.14
MJ 7/8 2.00 7/8 54 52 20 0.15
MJ 10 3.15 10 63 65 25 0.32
MJ 13 5.30 13 84 82 30 0.68
MJ 16 8.00 104 103 36 36 1.26
MJ 18/20 12.50 127 120 45 45 2.02
MJ 22 15.00 155 144 51 51 3.18
MJ26 21.20 160 172 57 57 4.52
MJ 32 31.50 174 197 69 69 8.20
Safety Factor 4:1
